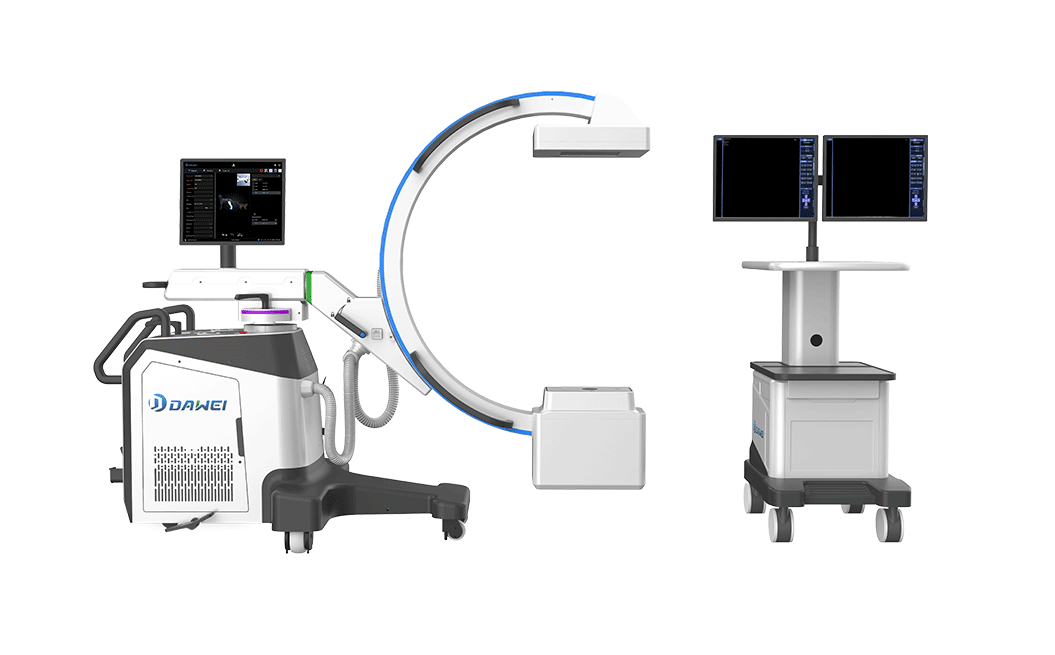

RCM-605XV

Animal Digital X-Ray System

Mobile C-arm Pet X-ray Equipment

The rack moves at multiple angles

Low radiation dose

Outstanding imaging quality

Features

Detector: 21 x 21 cm Fixed Amorphous Silicon Dynamic Flat Panel (FPD) Imaging Modes: Fluoroscopy, Radiography (Static Capture) Frame Rate: Up to 30 fps (Fluoroscopy, Full Field) Dose Optimization: Automatic Brightness Control (ABC) Mobility: Fully mobile C-arm base with lockable wheels Positioning: Extensive C-arm orbital, angular, and height movement Application: Specifically designed for veterinary use, including orthopedic,
soft tissue, dental, and emergency surgery, as well as diagnostic imaging.

Ideal For Veterinary Applications:

Orthopedic Surgery (Fracture repair, TPLO, etc.) Soft Tissue Surgery Foreign Body Localization & Removal Cardiac & Angiographic Procedures Neurological Procedures Diagnostic Radiography in Surgery Dental Procedures Emergency & Critical Care Imaging

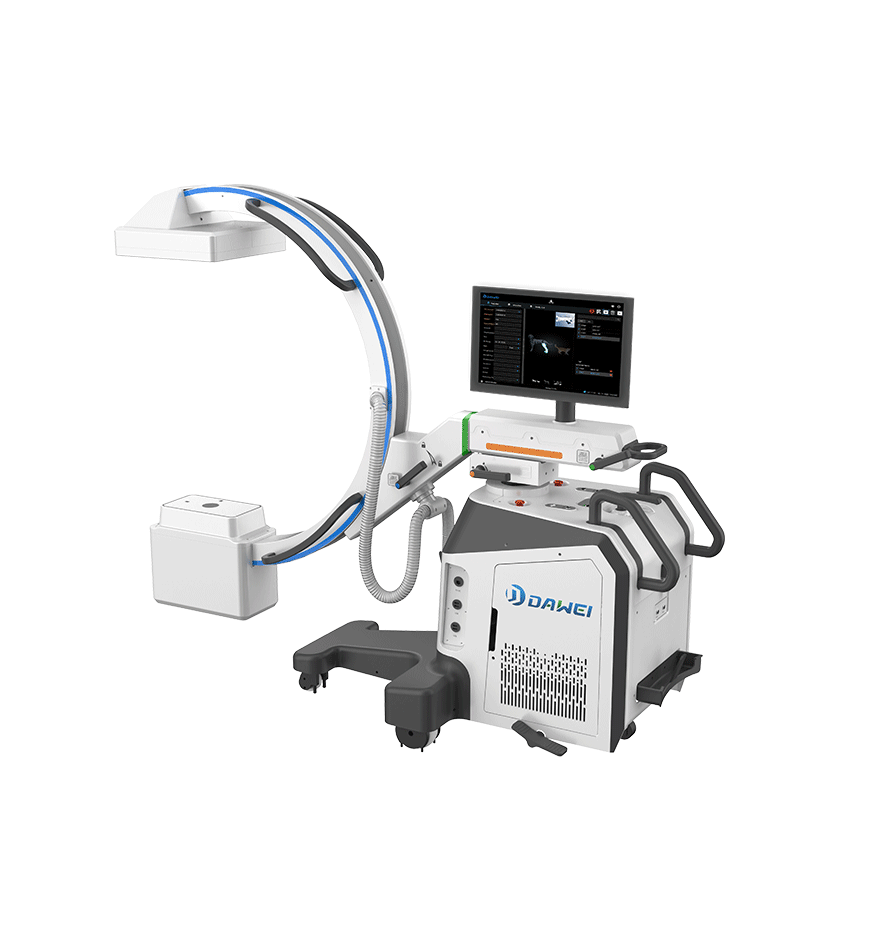

Appearance Display

Combined nose

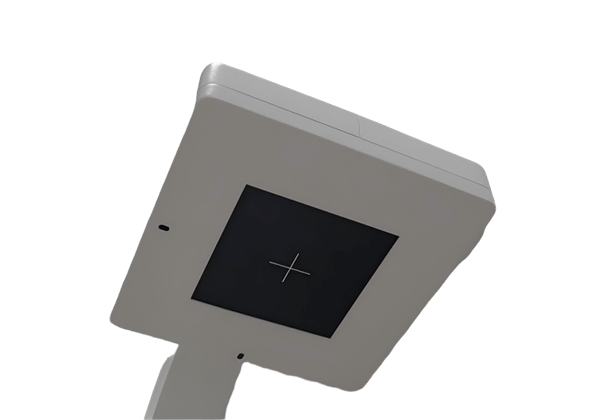

Flat panel detector

Digital imaging software

It is composed of a high-efficiency and highly stable
combined high-voltage generator and a beam limiter.

21 x 21 cm Fixed Amorphous Silicon

21 × 21 cm fixed amorphous silicon dynamic flat panel detector. Large-area planar imaging field of view, with no edge image distortion. Under holographic imaging conditions, a frame rate of 30fps is
captured to reduce inter-frame motion trailing.

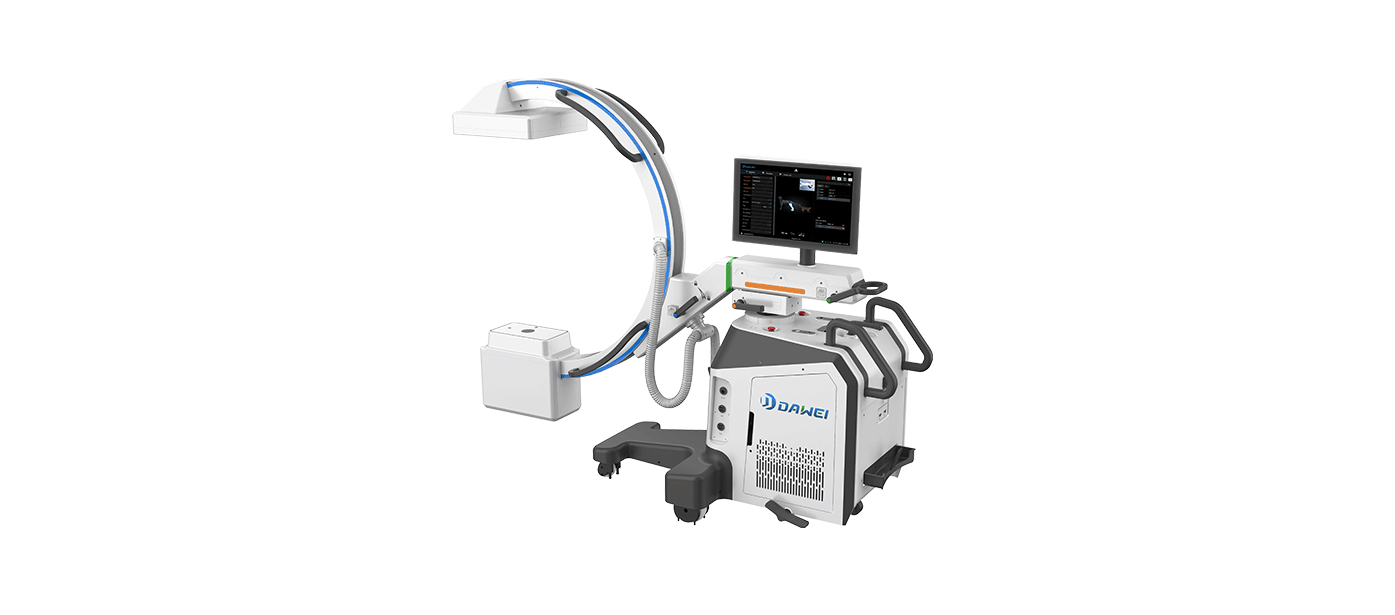

Designed for Efficiency in the Veterinary DR

The RCM-605XV pet x ray machine delivers the superior image quality,
operational flexibility, and safety features required by modern veterinary practices
for advanced surgical and diagnostic care. G

Clinical Images
